| Feature: |
|
- Light and compact, weight only 298 g, great stability to open lock.
- Streamlined pistol type, easy to hold.
- Skid proof design on the handle.
- Featured with a universal 100 ~ 240 V charger, also available for other electric plugs if requested.
- Li-ion battery can be recharged anytime, no memory effect.
- Signal flashes from trigger LED when the battery is fully charged.
- The range of motion can easily be adjusted by the new convenient rounded device.
- With LED light on the head of DINO?Electric Pick Gun can be used in any hard-to-see area.
- With protective circuit board, and also well equipped.
- New improvement for replacing needle simply by a screwdriver easily.
| |

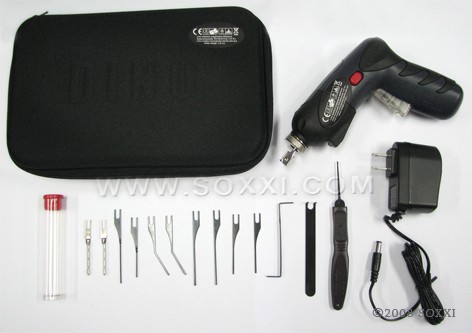

| Equipped with: |
|
- 2pcs standard 0.6 mm (thickness) straight needles.
- 2pcs standard 0.6 mm (thickness) angle needles.
- 2pcs 69mm (length), 0.9 mm (thickness) straight long needles.
- 1pc 0.9mm (thickness) dimple pick needle.
- 1pc 0.9mm (thickness) long dimple pick needle.
- 2pcs professional dimple pick needles.
- 1pc standard tension wrench.
- 1pc two fingers tension wrench.
- 1pc DINO?special key extractor.
- 1pc universal 100~240 V charger or 1pc other electric plug for territory.
| |
| Technical Data: |
|
- Dimension: 158mm * 120mm * 43mm
- Rated voltage: DC 3.6V
- Weight: 298g
- Battery Capacity: 1.3 Ah
- Charging time approx: 3.5 Hr
- Battery charger Input: AC100V~240V, 50/60 Hz (If equipped with an universal charger)
- Battery charger Output: DC 5V, 1000 mA (if equipped with an universal charger)
| |
| Overload protecting mode: |
|
| When the motor bears more than setting torque( approx 100 g-cm), the overload protecting mode will start and stop motor with fast blinks from the trigger LED for 42 seconds to protect DINO?gun. The motor can be restarted when the LED blink extinguishes. | |
|
| Safety rules for battery charging: Warning! Read all instructions! |
|
| | Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Always follow the safety rules and instructions in this manual. The manufacturer and distributors are not responsible for damage or injury caused by improver use or not in keeping with the requirements of the operating instructions of DINO?Electric Pick gun. | | | Warning:The DINO?Electric Pick gun is a built-in type battery tool, if something damaged, do not attempt to open the housing of this tool. | | | - Recharged only with the charger specified by the manufacturer.
- Store idle DINO?gun in a cool, dry place where they are protected from frost. Do not store this gun where temperature may exceed 120◦ F (49◦ C) such as in a vehicle, domestic heaters, direct sunlight or metal building during the summer. Temperature of > 50◦C < -5◦C and high moisture levels will damage the battery. There is risk of explosion.
- The battery charger supply is matched to the Li-on battery built in the DINO?Electric Pick gun. Any other battery charger is forbidden.
- The battery for DINO?gun must be completely charged prior to first time using and follow the charging instructions. The Li-on battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.
- Do not charge the battery when the temperature is below 0◦ C or above 35◦ C.
- Disconnect the battery charger from the socket when it is not used for extended periods.
- Do not operate the battery charger on easily inflammable surfaces (e.g. Paper, textiles, etc.) or combustible environments.
- If the battery is warm (after being used or if exposed to the sun etc.), let it cool down prior to charge.
- The LED from the trigger blinks shortly by means of the battery is fully charged.
- When the battery is hungry, the trigger LED flashes twice by means of protective circuit. (Long period of low voltage will result in damaging and losing the battery??s function, recharge the battery immediately when the low voltage signal appears.
- The handle of DINO?gun will be warm during the charging procedure.
- Disconnect the charger from the power source before making any adjustments, changing accessories or storing DINO?gun.
- Avoid accidental starting. Ensure the switch (red button) is in the off position before charging.
- Do not expose DINO?gun or charger at wet conditions to avoid the risk of electric shock.
- Pre-recharge the battery every 4 months when itend to keep in storage for long time.
- Do not expose the tool under sunshine directly more than 30 minutes.
| |
| Operation: |
|
- To switch on the gun by pushing on/off red button. Press the trigger to start and the head LED will light up enable to illuminate poorly area. Release the trigger, DINO?gun will stop and the head LED will extinguish after 30 seconds. Also the trigger LED lights up when you press, and it extinguishes when release trigger.
- Adjust the range of picking motion simply turns round device on the head of gun by fingers.
- Leave it cool down if the tool overheats.
- Do not operate DINO?gun in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. The tool creates sparks which may ignite the dust or fumes.
- When power is insufficient, the motor will not be able to run high or middle range of picking motion.
- The pick needle could be stuck. Recharge asap.
| |
