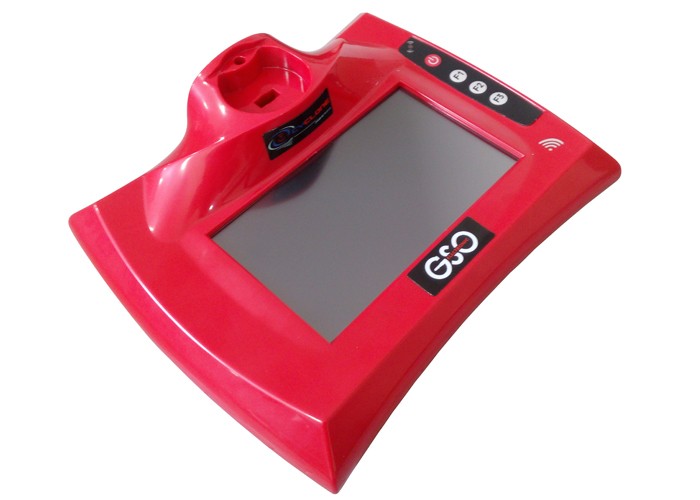

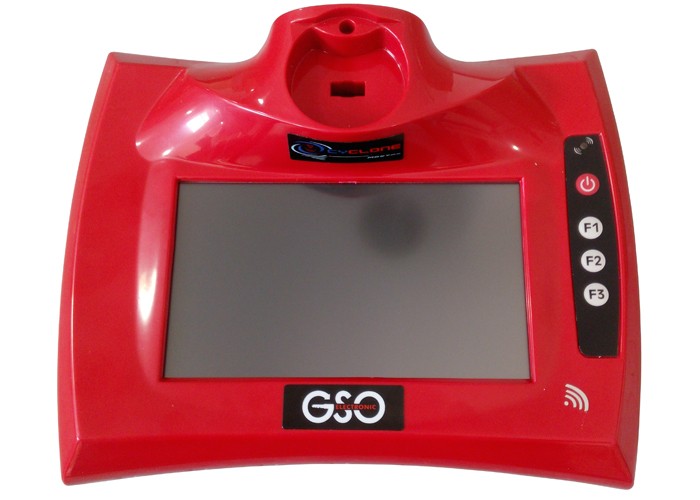

The Cyclone Master is the next generation complete key cloning solution from Diagnostics Box,specifically developed for locksmiths and technicians in the automotive sector. Unlike its predecessor, the Cyclone Master does not require any additional PC software to work. Now you can register or update software directly on to the tool via a WiFi or GPRS connection. Unlike many other cloning tools in the marketplace, the Cyclone Master allows an original key to be copied onto all-makes and types of transponders. The Cyclone Master offers you complete flexibility, by allowing single software modules to be purchased as required, enabling you to build a tailored software package to suit your needs. Designed with simplicity in mind, the Cyclone Master is compact, powerful and simple to use - making it the world's most advanced key cloning device available

Functionality

• Transponder identification (all types)
• Transponder cloning for fixed 11, 12, 13, 14, 33, T5 & 4C
• Transponder cloning for Crypto 40(some), 41, 42, 44 (unlocked VAG), 45, 73 & 8C
• Transponder cloning for Crypto 2, ID46 onto carbon TS46, TPX3/4 or TK60 (Internet)
• Transponder cloning for Texas 4D onto EH2, TPX2/3/4, TK40 (Internet)
• Transponder cloning for ID48 Daewoo, Chevrolet and some Hyundai/Kia onto TS48
• Writing to transponder T5, PCF7930, PCF7931, PCF7935, PCF7936, PCF7946, PCF7947, 4D60, 48, 8C, TPX1, TPX2, TPX3, TPX4, EH1, EH2, TK60, Z4C, CN2, TS46, TS48, TK5551
• Cloning to many fixed and crypto transponders including ID46 & 8C
• Cloning to the latest carbon CN2 transponders for 4C, 4D and ID46
• Cloning Mercedes C,E,G Class, ID33 transponders
• Cloning some ID48 for Daewoo, Chevrolet, Hyundai and Kia
• Generate transponder logic for fixed transponders
• Generate Texas Crypto logic from ID60 to ID67-68-69-70
• Generate Philips Crypto/Crypto 2 logic
• Calculate EEPROM logic from transponders
• Read PIN/Pre-code from EEPROM file
• Generate transponder from EEPROM file
• Modify transponder logic
• Pre-code aftermarket keys (ID48)(ID46)
• Built-in infrared and remote frequency tester
• PIN code reading from key on Peugeot 45, Renault 33,
• Hyundai/Kia 6
• Unlock most ID48 transponders (75%) & virgin 48 CAN
• Hyundai/Kia pin code reading (credit based)
• Transponder catalogue
• Customer database
• Immobiliser EEPROM files covered
• Internal remote battery charging
